Diode Pumped Green CrystaLaser

Ultra-compact  High reliability  Low noise  Low cost

SPECIFICATIONS

Wavelength                       532 nm
CW output power (mW)             500, 400, 300, 200, 150, 100, 75, 50, 25, 10, 5
Output power stability           < 2% over 2 hours;
                                 (Ultra-stable option: <0.25%, over 24 hrs)
Noise(10 Hz to 50 MHz)           < 0.5% for L-version and S-version
Transverse beam mode             TEMoo,
Beam diameter (1/e2)             0.36 mm
Beam divergence                  2 mrad
Beam pointing stability          0.005 mrad/°C
Polarization ratio               > 100 : 1
Operation temperature            10 to 35 °C
Operation voltage                90-250 VAC, or 9-24 VDC
Typical power consumption        10 W
Warm-up time                     < 2 min
Dimensions of laser head         3 x 3 x 12 cm (1.2 x 1.2 x 4.7 inch)
Dimensions of power supply       AC: 5x14x15 cm3 (2x5x6 inch)  DC: 3.5x8.5x12.7 cm3
Expected life time               > 10,000 hours

Model number                     GCL-XXX-S       GCL-XXX-L      GCL-XXX-M
                                 S-version       L-version      M-version
-----------------------------------------------------------------------
Longitudinal mode                single(SLM)     several        multiple
Linewidth                        <0.00001 nm      <0.2 nm        <0.2 nm
Instantaneous Linewidth          10 kHz
Coherence length                 >100 meter      2-10 mm         2-10 mm
Output noise(rms)                <0.5%           <0.5%          1% at 0-10 kHz, ~20% at 500 kHz

Diode Pumped Infrared CrystaLaser

Miniature  High stability  High reliability  SLM  Low cost

SPECIFICATIONS

SPECIFICATIONS
Wavelength   Laser crystal    CW laser output power (mW) 1)
946 nm       Nd:YAG           200
1064 nm      Nd:YAG/YVO4      3000, 2500, 2000, 1500, 1000, 800, 500, 300, 100 and <20 mW
1047 nm      Nd:YLF           2000, 1500, 1000, 800, 500, 300, 100, 50 and <20 mW
1053 nm      Nd:YLF           2000, 1500, 1000, 800, 500, 300, 100, 50 and <20 mW
1313 nm      Nd:YLF           1000, 800, 500, 300, 100, 50 and <20 mW
1319 nm      Nd:YAG           1000, 800, 500, 300, 100, 50 and <20 mW
1342 nm      Nd:YVO4          1500, 1000, 800, 500, 300, 100, 50 and <20 mW
Plane of the polarization     1064/1047/1342nm horizontal, 1053/1313/1319nm vertical
Polarization ratio            > 100 : 1
Transverse mode               TEMoo, M2 < 1.2
Beam divergence               3.6 mrad  (full angle)
Beam diameter (1/e2)          0.45 mm
Beam pointing stability       < 0.005 mrad/°C
Output power stability        < 1 % over 2 hours, < 2% over 24 hours
                              (Ultra-stable option:<0.25%, <0.25%, over 24 hrs)
Noise (rms, 10Hz-1MHz)        < 0.5%
Wavefront distortion          < Wave 1/20
Operation temperature         5 to 35 °C
Dimensions of laser head      3 x 3 x 12 cm3, or for high power 5 x 3.2 x 16 cm3
Dimensions of power supply    AC: 5x14x15 cm3 (2x5x6 inch)  DC: 3.5x8.5x12.7 cm3
Operation voltage             90-250 VAC, or 9-20 VDC
Typical power consumption     10 W
Warm-up time                  < 1 min
Expected life time            > 10,000 hours
LaLaser linewidth       0.2 nm typical, 0.05 nm narrow linewidth selection available
   For Single longitudinal mode (SLM) laser, linewidth <0.00001 nm
   instantaneous Linewidth 10 kHz, Coherence length >100 meter
---------------------------------------------------
1) Maximum CW output power of single longitudinal mode lasers:
   700mW@1064nm, 200mW@1053nm, 250mW@1047nm, 100mW@1313nm, 200mW@1340nm
   single longitudinal mode with lower output power available
   Wavelength tunable option for SLM laser available.

   TEMoo mode lasers with output power of 2 W, 1.5 W, 1 W, 800 mW, 700 mW
   600 mW, 500 mW, 400 mW, 300 mW, 200 mW, 100 mW, 50 mW and 20 mW availble
2) Single longitudinal mode version with instantaneous linewidth
   <10 kHz available
3) Collimators for reducing or increasing beam divergence available
4) Dual-line output 532 and 1064 nm laser up to 300 mW available
5) 2 kHz, 5 kHz and 10 kHz TTL modulation option
| Main | Green laser | Blue laser | Red laser | Infrared laser | Q-switched laser | Dimensions | Catalog download | Contact CrystaLaser |

Compact Solid State Yellow Lasers

Ultra-compact  High efficiency  High reliability  Low noise
SPECIFICATIONS
Wavelength                    561 nm, 542 nm, 555 nm and 593 nm
Output power (mW)             200, 150, 100, 75, 40, 20, 10, 5 mW    M-version
Transverse beam mode          TEMoo,  M2<1.1
Beam divergence               2 mrad
Beam diameter (1/e2)          0.36 mm
Beam point stability          0.005 mrad/°C
Stability (rms)               < 2%    (Ultra-stable option: <0.25%, over 24 hrs)
                              S-version               M-version
Available output power        25, 10, 5 mW            200, 150, 100, 75, 40, 20, 10, 5 mW
Longitudinal mode             Single                  2-4 longitudinal modes
Linewidth                     0.00001 nm              0.15 nm
Amplitude noise (rms)         < 0.5% (10Hz-20MHz)     < 1% (10 Hz to 10 kHz)
Coherence length              300 meters              1-3 mm
Polarization ratio            > 50 : 1 or > 100 : 1 option
Operation temperature         10 to 35 °C
Operation voltage             90-250 VAC or 9-20 VDC
Power consumption             15 W
Warm-up time                  1 minute
Dimensions of laser head      3 x 3 x 12 cm (1.2 x 1.2 x 4.7 inch), 5 x 3.6 x 18 cm for high power
Dimension of power supply     AC: 5x14x15 cm3 (2x5x6 inch)  DC: 3.5x8.5x12.7 cm3
Expected life time            > 10,000 hours

Compact Solid State Blue Lasers

Ultra-compact  High efficiency  High reliability  Low noise

Diode-pumped 473 nm Blue Lasers, 430/490nm Blue Lasers and 375/405/445/473/488 nm UV-Violet-Blue Lasers

SPECIFICATIONS
Wavelength                    473 nm
Laser material                Nd:YAG
CW output power               100 mW, 75 mW, 40 mW, 30 mW, 20 mW, 10 mW, 5 mW; Noise <2%(1 Hz-10 kHz)
                              15 mW, 10 mW, 5 mW, 2 mW; Noise <1%(1Hz-10 MHz)
Transverse spacial mode       TEMoo,  M2<1.1
Beam divergence               3 mrad
Beam diameter (1/e2)          0.25 mm
Beam point stability          0.005 mrad/°C
Stability (rms)               < 2%
                              (Ultra-stable option: <0.25%, over 24 hrs)
Amplitude noise               < 1%,or < 5% (rms, 10 Hz to 20 MHz)
Longitudinal mode             Two or three longitudinal modes
Linewidth                     0.15 nm
Polarization ratio            > 50 : 1
Operation temperature         10 to 35 °C
Operation voltage             90-250 VAC or 9-24 VDC
Power consumption             15 W
Warm-up time                  2 minutes
Dimension of laser head       3 x 3 x 12 cm with a 6 mm thick base plate
Dimension of power supply     AC: 5x14x15 cm3 (2x5x6 inch)  DC: 3.5x8.5x12.7 cm3
Expected life time            > 10,000 hours

Rainbow Photonics Bluepoint 430nm/490nm Lasers

SPECIFICATIONS
Wavelength                 490+/-2 nm          430+/-2 nm
CW output power (mW)        2,    5           5,    10    (15)
Beam divergence(mrad)
    Horizontal             0.8,   0.3        0.8,   0.8,   0.3
    Vertical               1.1,   0.4        1.1,   1.1,   0.4
Beam diameter(1/e2, mm)
    Horizontal             0.4,   1.2        0.4,   0.4,   1.1
    Vertical               0.3,   1.0        0.3,   0.3,   0.9
Transverse mode               TEMoo, M2<1.2
Long term stability           < 5 % (p-p, 2 hours)
Noise(rms)                    < 1 % (from 10 Hz to 10 MHz)
Beam pointing stability       < 0.05 mrad
Longitudinal mode             multiple longitudinal mode(MLM)
Linewidth                     < 20 GHz
Coherence length              > 2 cm
Polarization                  vertical, linear
Polarization ratio            > 500 : 1
Operation temperature         15 to 30 °C
Warm-up time                  <15 min, 1 minute from standby
Operation voltage             90-250 VAC
Power consumption             <80 W
Dimension of laser head       21 x 12 x 8 cm
Dimension of power supply     22 x 27 x 7.5 cm

Ultra-Violet-Blue 375/405/445/473/488 nm Lasers

SPECIFICATIONS
Wavelength (+/-5 nm)          375 nm(max 20mW) 405 nm(max 1W) 445 nm(max 1W) 473/488 nm(max 20mW)
CW output power               1000 mW* 500 mW* 100 mW, 50 mW, 40 mW, 20 mW, 15 mW, 10 mW, 5 mW
Polarization ratio            100:1
Transverse mode               TEMoo, M2<1.2
Beam diameter (1/e2) and      1.1 mm
Beam divergence               0.6 mrad
Output stability              <1% over 24 hours; ultra-stable option <0.25% over 24 hours;
Beam point stability          0.005 mrad/°C
Longitudinal mode             Multiple longitudinal mode
                              Single longitudinal mode with >50 m coherence length available
Noise (rms, 10Hz-20MHz)       <0.25 %
Operation temperature         10 to 40 °C
Dimensions of laser head      3x3.6x13.5 cm; Dimensions type 4
Dimensions of power supply    AC: 5x14x15 cm, DC: integrated inside laser head
Warm-up time                  30 seconds
Operation voltage             12-15 VDC or 90-250 VAC
Typical power consumption     6 Watts
* 200-1000 mW 405 nm or 445 nm lasers are square mode output, M2<3; or fiber coupled output
| Main | Green laser | Blue laser | Red laser | Infrared laser | Q-switched laser | Dimensions | Catalog download | Contact CrystaLaser|

Diode Pumped Compact Q-switched CrystaLaser

UV to IR  High reliability  TEMoo mode  Low cost

SPECIFICATIONS

Laser crystals and Wavelengths:
     Nd:YAG/Nd:YVO4    Nd:YLF           Max. average output power*
UV       266 nm      262, 263 nm        50 mW, 30 mW, 20 mW, 10 mW, 5 mW, 2 mW
UV       355 nm      349, 351 nm        100 mW, 50 mW, 25 mW, 10 mW
Blue     473 nm      447, 438 nm        50 mW, 25 mW
Green    532 nm      523, 527 nm        1000 mW, 500 mW, 200 mW, 100 mW, 50 mW
Red      671 nm      657, 660 nm        400 mW, 200 mW, 100 mW, 50 mW
IR      1064 nm     1047,1053 nm        1.5 W, 1 W, 500 mW, 200 mW
Other Q-switched laser wavelengths available: 657, 660, 671, 946, 1313, 1320, 1342 nm
Pulse energy**                Example: For an average maximum power of 1000 mW Nd:YLF laser,
                              the maximum pulse energy is 0.3 mJ at 1 kHz
Pulse width                   Typically 10 ns to 20 ns varies from lasers and rep. rate
                              Optional pulse width from 5 ns to 100 ns available
Repetition rate               1 kHz to 100 kHz internal adjustable
                              0 Hz to 200 kHz by external trigger
External trigger signal       TTL, trig at rising edge
Transverse beam mode          TEMoo, M2<1.3, typical M2<1.1
Longitudinal mode             Multiple longitudinal modes
  NEW LASER PRODUCTS          Single longitudinal mode Q-switched lasers
  contact CrystaLaser         Single longutidinal mode laser provides >2 m coherence length
Beam divergence               3 to 4 mrad, full angle
Beam point stability          0.005 mrad/°C
Beam diameter (1/e2)          IR 0.5mm, Green 0.35mm, UV 0.25 mm
Power stability, rms          5% after warm-up, at 1k to 10 kHz
Pulse to pulse variation      +/-10%
Polarization ratio            100:1
Dimensions of laser head      5x18.5x3.6 cm (L,W,H) for most of the lasers or
                              7x18.5x3.6 cm (L,W,H) for high power lasers
Dimensions of power supply    20x20x8 cm (L,W,H)
Cooling                       Laser head: conductive cooling; Power supply: fan
Warm-up time                  <5 min
Operation temperature         10 to 35 °C
Operation voltage             90-250 VAC or 12 VDC
Power consumption             40 W, typical
View photo of the Q-switched laser

* Average output power, Nd:YAG/YVO4 lasers, 1064 & 532 nm rep rate at >40kHz;
  355 & 266 nm lasers at 15kHz;    Nd:YLF lasers, 1047/1053 nm, rep.
  rate at 15kHz, 527 & 523 nm rep.  rate at 8kHz;  349, 351 & 262 nm lasers at 4kHz.
**Maximum pulse energy at 1 kHz, 0.25mJ for 1053&1047 nm, 0.12mJ for 523&527 nm,
  0.05mJ for 349&351 nm lasers, respectively.

Model No. samples                Max. average output power
QUV-266-5,    QUV-262-5,                    5 mW
QUV-355-25,   QUV-349-25,   QUV-351-25     25 mW
QG-532-200,   QG-523-200,   QG-527-200    200 mW
QIR-1064-500, QIR-1047-500, QIR-1053-500  500 mW

Warrantee: 6 months warranty with unlimited usage against defective parts and labour
after shipment for all of the Q-switched lasers.
| Main | Green laser | Blue laser | Red laser | Infrared laser | Q-switched laser | Dimensions | Catalog download | Contact CrystaLaser |

Compact Red CrystaLaser

TEMoo mode  High stability  High reliability

SPECIFICATIONS
Wavelength (+/-3nm)           635nm  638/642nm   660 nm  690 nm  785 nm  808 nm  980 nm
Maximum Output power          35 mW   100 mW     100 mW   50 mW  120 mW  120 mW   1W
Polarization ratio            100:1
Transverse mode               TEMoo, M2<1.2
Beam diameter (1/e2) and      0.9 mm
Beam divergence               1 mrad
Longitudinal mode             Multiple longitudinal mode
       SLM Option             Single longitudinal mode >10 meters coherence length available
Output stability              <1 % over 24 hours
Beam point stability          0.005 mrad/°C
Noise (rms, 10Hz-20MHz)       <0.5 %
Operation temperature         10 to 40 °C
Dimensions of laser head      3x3x12 cm with a fixed 6 mm thick base plate
Dimensions of power supply    DC: 8.5x3.5x12.7 cm,  AC: 5x14x15 cm
Warm-up time                  30 seconds
Operation voltage             12 VDC or 90-250 VAC
Typical power consumption     5 Watts

Intermediate power available from 1 mW to the maximum output power
Other beam divergence and beam size is available on request
smaller size laser head and power supply available for quantity order.

Red Laser, CW output 100 mW to 200 mW, at 656.5 nm, 660 nm and 671 nm

Preliminary SPECIFICATIONS
Wavelength                    656.5 nm     660 nm       671 nm
Laser material                Nd:YLF       Nd:YAG       Nd:YVO4
CW output power               200 mW, 100 mW, 50 mW, 25 mW, 10 mW
Transverse beam mode          TEMoo,  M2<1.1
Beam divergence               3 mrad
Beam diameter (1/e2)          0.35 mm
Beam point stability          0.005 mrad/°C
Stability (rms)               < 2%          (Ultra-stable option: <0.5%, over 24 hrs)
                              S-version              M-version
Longitudinal mode             Single                 Two to five longitudinal modes
Linewidth                     0.00001 nm             0.2 nm
Coherence length              > 300 meters           1-5 mm
Amplitude noise (rms)         < 0.5% (10Hz-10MHz)    < 1% (10 Hz-10 kHz)
Polarization ratio            > 50 : 1
Operation temperature         10 to 35 °C
Operation voltage             90-250 VAC or 9-24 VDC
Power consumption             15 W
Warm-up time                  2 minutes
Dimension of laser head       3 x 3 x 12 cm with a 6 mm thick base plate
                              or 7x18.5x3.6 cm (L,W,H) for 200 mW lasers
Dimension of power supply     AC: 5x14x15 cm3 (2x5x6 inch)  DC: 3.5x8.5x12.7 cm3
Expected life time            > 10,000 hours
| Main | Green laser | Blue laser | Red laser | Infrared laser | Q-switched laser | Dimensions | Catalog download | Contact CrystaLaser |

Diode pumped green LaserGreen laser moduleGreen and blue YAG laser
Nd:YAG blue Laser moduleQ-switched UV crystal laserCrystal laser beam profile
Click on any picture to get more detail.

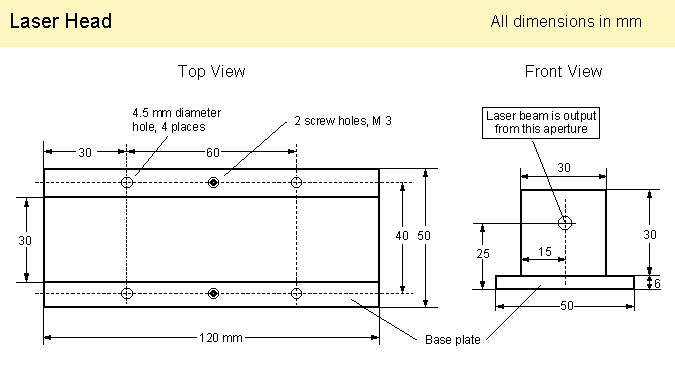

Laser Head Physical Dimension


Power Supply

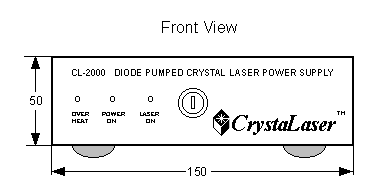

Front view of Power Supply Unit Side View of Power Supply Unit

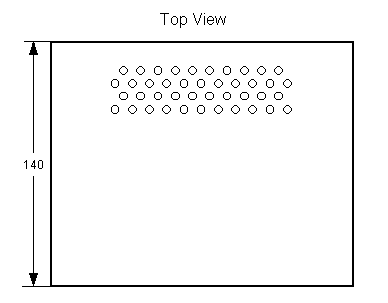

Top View of Power Supply Unit All dimension in mm



For more information, please access the online information request form
or send e-mail
Fax (775) 348-7047, Phone (775) 348-4820
CrystaLaser, 4750 Longley lane, Suite 205, Reno, NV 89502, USA

Click here to access the online information request form

| Main | Green laser | Blue laser | Red laser | Infrared laser | Q-switched laser | Dimensions | Catalog download | Contact CrystaLaser |
