Yellow Laser, Yellow 561 nm laser system, 593 nm and 561nm Yellow laser
Yellow Laser

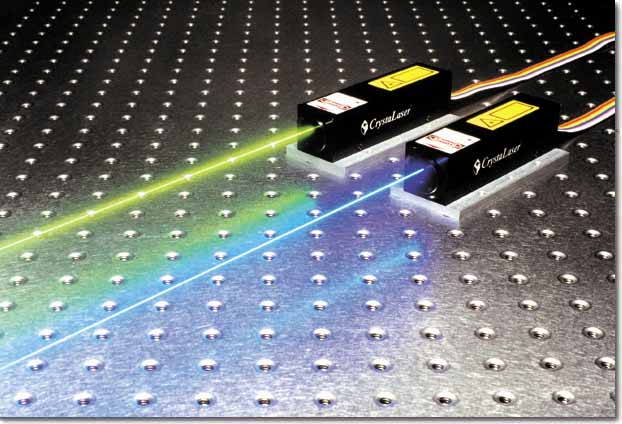

- CrystaLaser, designs and manufactures state of the art ultra-compact diode-pumped solid-state crystal yellow laser systems.
 Our yellow laser features with
high stability, high efficiency, high reliability, low noise and excellent laser
beam quality. These yellow lasers are specifically designed for OEM,
scientific and industrial use.
- Current available yellow laser products including diode-pumped CW yellow laser and Q-switched yellow laser products.
- New yellow laser products:
- Single longitudinal mode, low noise 561 nm yellow laser up to 50 mW
- Single longitudinal mode, low noise 593-594 nm orange yellow laser up to 25 mW
- 500 mW TEMoo mode DPSS yellow laser at 561 nm
- 200 mW yellowish green laser at 542 nm and 555 nm
- Related green CW and yellow green Q-switched laser at 532 nm, 523 nm, 527 nm, 542 nm, 555 nm, 561 nm, 589 nm, 593 nm available.
- The yellow laser is easy to use, plug and play,
no cooling fan, no noise and no vibration during laser operation.
- The diode-pumped CrystaLasers are based on our proprietary laser cavity technology. This new
technology allows our yellow crystal laser to operate in TEMoo mode with low amplitude noise and extremely low power
consumption in a compact laser housing.
- TTL modulation, analog modulation and fiber coupling options available, If you need special configurations of the yellow laser, please contact CrystaLaser directly.
- Please download the specifications of
Compact 561nm, 593 nm Single Longitudinal Mode Orange Yellow Lasers
Specifications download
|
|
Wavelength, nm
SLM, Low noise output
Transverse mode
Beam diameter (1/e2)
Beam divergence
Output stability, rms
Beam point stability
Polarization
Longitudinal mode
Spectrum linewidth
Operating temperature
Operating voltage
Warm-up time
Power consumption
Size of laser head
Size of power supply
Expected life time
|
561nm 593nm / 594nm
50, 25, 10 mW 25, 10 mW
TEMoo, M2 typical 1.1
0.7 mm (0.5x-3X beam expander available)
1.2 mrad (0.5x-3X beam expander available)
<2% over 8 hrs; Ultra-stable option: <0.25% over 24 hrs
0.005 mrad/degree C
Horizontal; Linear; Polarization ratio >50:1, >100:1 option
SLM laser: single longitudinal mode
<0.1pm, nominal
10 to 35 degree C
90-250 VAC or 9-20 VDC
<2 minutes
15 W
3 x 3.6 x 13.5 cm
AC: 5x14x15 cm (2x5x6 inch) DC: 3.5x8.5x12.7 cm
> 10,000 hours
|
Orange Yellow Laser and Yellowish Green Lasers
Specifications
|
|
Wavelength, nm
Output power, mW
SLM and Low noise output
Transverse mode
Beam diameter (1/e2)
Beam divergence
Output stability, rms
Beam point stability
Polarization
Longitudinal mode
Spectrum linewidth
Operating temperature
Operating voltage
Warm-up time
Power consumption
Size of laser head
Size of power supply
Expected life time
|
561 (available 542, 555, 558, 589, 593 and 532, 527, 523 nm)
500, 200, 100, 50, 25, 10mW; Noise <2% (1Hz-10kHz)
150, 100, 75, 50, 25, 10mW; Noise <0.5% (1Hz-100MHz)
TEMoo, M2<1.1
0.36 mm (2X beam expander, beam size 0.7 mm)
2 mrad (with a 2X beam expander, divergence 1 mrad)
<2% over 8 hrs; Ultra-stable option: <0.25% over 24 hrs
0.005 mrad/degree C
Linear; Polarization ratio > 50:1; or >100:1 option
SLM laser: single; Standard version laser: several longitudinal modes
0.15 nm, nominal
10 to 35 degree C
90-250 VAC or 9-20 VDC
1 minute
15 W
3 x 3 x 12 cm with a fixed 6 mm thick base plate
AC: 5x14x15 cm (2x5x6 inch) DC: 3.5x8.5x12.7 cm
> 10,000 hours
|

|
